| Tên thương hiệu: | LIGHT-BO |
| Số mẫu: | LB6031DWRG3S-T2-D-JT |
| MOQ: | 1000 |
| giá bán: | Negotiate |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây |
| Khả năng cung cấp: | 2000pcs/ngày |

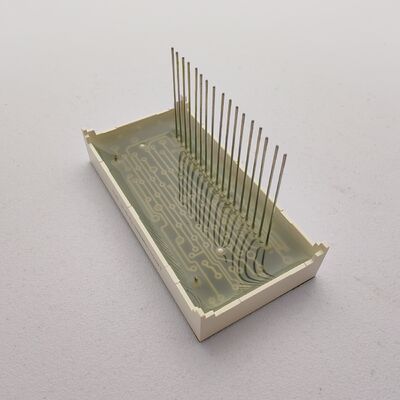

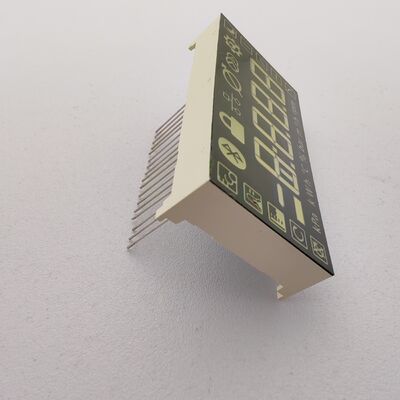

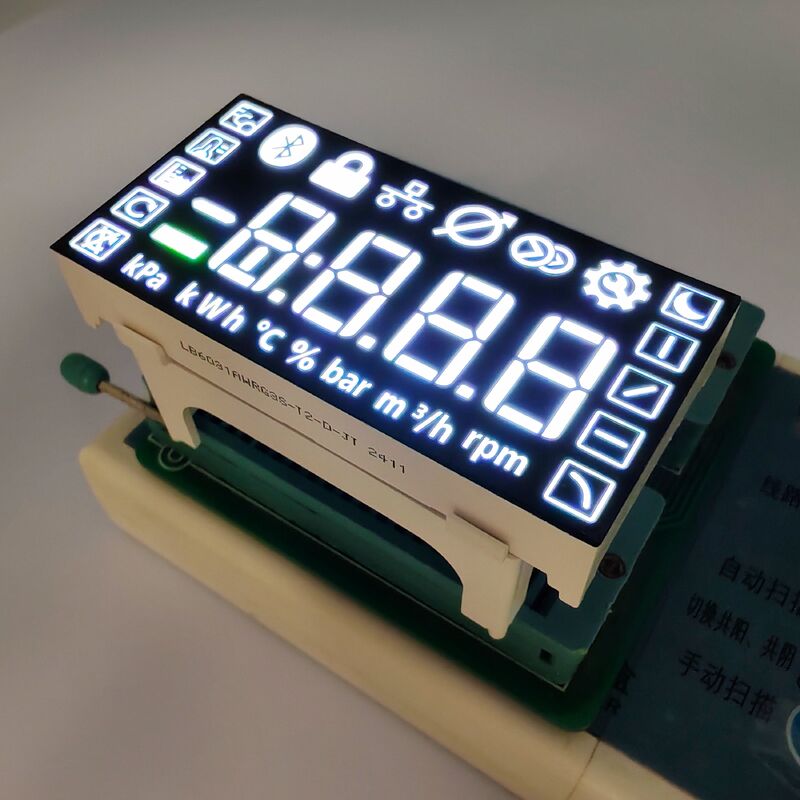

| Product Name | Customizable White & Green LED 7-Segment Display for Electric Scooters | Other color and configuration options available |
| Part Number | LB6031DWRG3S-T2-D-JT | Custom part number printing supported |
| Standard Color | White & Green | Also available in white, blue, pure green, yellow-green, orange, etc. |
| Polarity | Common Anode | Common Cathode option available |
| Lifespan | 80,000 hours | - |
| Free Samples | Available | - |
| Sample Lead Time | 5-7 working days (standard samples) 15-20 working days (tooling samples) |
- |
| Production Lead Time | 15-20 working days | May vary depending on order quantity |
| OEM & ODM | Supported | Customization based on your drawings or ideas |
| LOGO Printing | Supported | According to your provided drawing or design |
| Minimum Order Quantity (MOQ) | 1,000 PCS | 100-500 PCS acceptable for initial orders |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensity | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum Width Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
| Parameter | Symbol | Ratings | Unit |
|---|---|---|---|
| Forward Current (per dice) | Ipm | 20 | mA |
| Reverse Voltage (per dice) | Vr | 5 | V |
| Power Dissipation (per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature (≤3 seconds) | Th | 260 | ºC |
