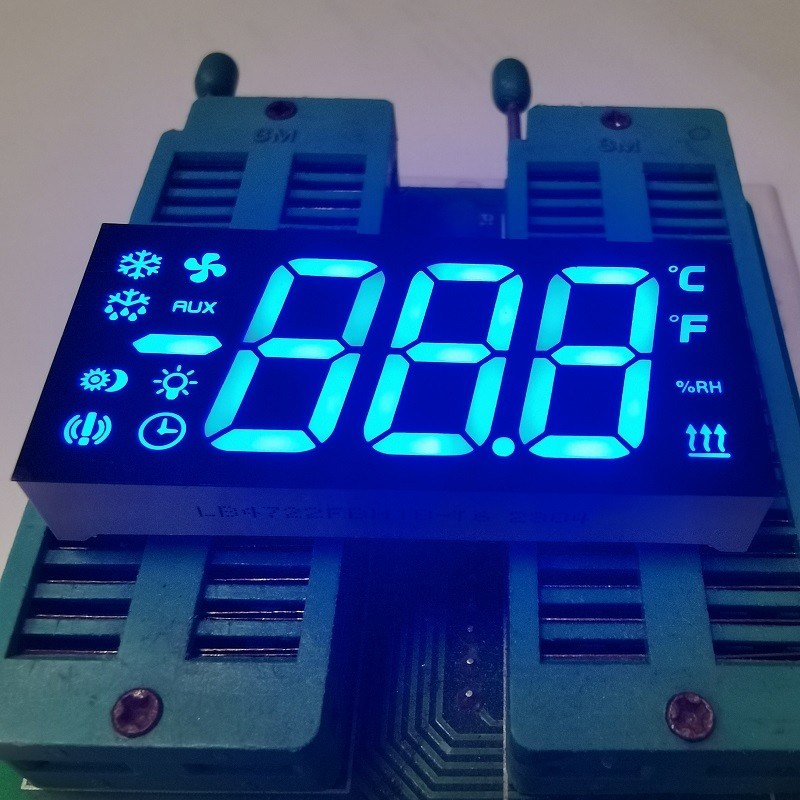

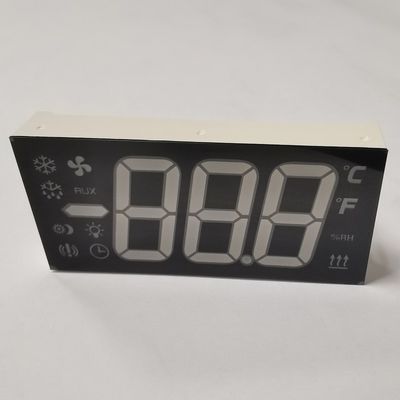

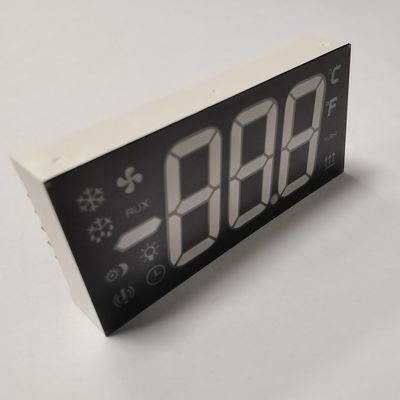

Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel

Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel

Tên thương hiệu: LIGHTBO
Số mẫu: LB4722FBH1B-T6
MOQ: 1000
giá bán: Negotiate
Điều khoản thanh toán: TT, Công Đoàn Phương Tây
Khả năng cung cấp: 50000 chiếc / ngày
Thông tin chi tiết
Nguồn gốc:
THÂM QUYẾN, TRUNG QUỐC
Chứng nhận:
ISO9001&ROHS
sự phân cực:
Cathode chung
Gói vận chuyển:
EPE + Thùng
Màu đèn LED:
Màu đỏ
Vị trí:
THÂM QUYẾN
Chiều cao ký tự:
9,92mm ( 0,38")
Điện áp đầu vào:
1,7 ~ 2,6V
Nhiệt độ hoạt động:
-40°C đến +85°C
Kích thước:
49*15*8mm
sự tiêu thụ năng lượng:
Công suất thấp
kích thước phác thảo:
30.1*16*7mm
Xếp hạng IP:
IP54
Chiều cao kỹ thuật số:
20,32mm (0,80 inch)
Chiều cao chữ số:
0,23inch
Bưu kiện:
NHÚNG
Kiểu:
Tiêu chuẩn
Tính năng:
Hai chữ số, tản nhiệt nhanh
Cách sử dụng:
Trong nhà, ngoài trời, trong nhà/ngoài trời, văn phòng, ngoài trời và trong nhà
Màu chip ống:
Đầy đủ màu sắc, đỏ, xanh lá cây, trắng, xanh dương
Kích thước màn hình:
Kích thước tùy chỉnh, 12,7x 7,6 x 7mm,50,4*19,0*8,1mm,113mm*29mm,28,8*40,8mm
Chức năng hiển thị:
Đồ họa, Hoạt hình, Video, chữ số 0-9, nhiệt độ
Điểm ảnh:
10mm,7mm,25mm,8.0,10.20mm
Màu sắc:
Màu xanh, vàng, xanh lá cây, đỏ, trắng
Độ sáng:
Tự động làm mờ bằng cảm biến ánh sáng, 4000,7000cd/m2, 5000~6500mcd, Độ sáng cao
Bảo hành:
2 năm, 1 năm
Tên sản phẩm:
Màn Hình Hiển Thị LED 7 Đoạn Hot Video HD P6,Màn Hình Led 7 Đoạn,Bảng Hiển Thị Video Led Hạt Dẻ
Ứng dụng:
Thiết bị điện tử văn phòng, Thiết bị gia dụng, v.v., Quảng cáo ngoài trời Led, Quảng cáo trong nhà
Tên:
Màn hình xăng trạm giá LED, Màn hình nhỏ bảy đoạn 3 chữ số 0,2 inch Màn hình led smd 7 đoạn, Màn hìn
Nhiệt độ hoạt động:
-35 ~ +85oC,-20 +85,-40~80oC,-45-80oC
Tuổi thọ:
100000 giờ, 10 0000 giờ, hơn 50000 giờ
Điện áp:
DC12V,90~120V/220~240V (dựa trên nhu cầu của khách hàng)
phát ra màu sắc:
Màu xanh, vàng, xanh lá cây, trắng, đỏ
Chiều cao chữ số:
0,2 inch, 1,5,1,2,0,38,0,5
chip LED:
Epistar,InGan,AlGanlp
OEM:
Đúng
chi tiết đóng gói:
EPE + Thùng
Khả năng cung cấp:
50000 chiếc / ngày
Làm nổi bật:

blue 3 digit 7 segment LED display

,

7 segment LED display for refrigeration

,

refrigeration control panel LED display

Mô tả sản phẩm
Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel
Product Overview

High-quality blue 3-digit 7-segment LED display specifically designed for refrigeration control panels and temperature monitoring applications.

  • Package dimension: 10×13×7mm
  • Character height: 9.9mm (0.39 inch)
  • Polarity: Common cathode
  • Color: Super bright blue
  • Face color: Black/Grey
  • Wavelength: 630-635nm
  • Luminous intensity: 50-60mcd/dice
  • Forward voltage: 1.8-2.2V/led
  • Available colors: red, blue, yellow green, pure green, white, amber, orange, and yellow
Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel 0
Absolute Maximum Ratings (Ta=25°C)
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 °C
Storage Temperature Range Tstg -40~+85 °C
Solder Temperature (≤3 seconds) Th 260 °C
Electrical Characteristics by Color Code
Yellow Green - J
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 30 40 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 569 574 nm
Amber/Yellow - Y
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.5 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 60 80 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 585 595 nm
Orange - F
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 60 80 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 600 605 nm
Super Bright Red - R
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 50 60 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 630 635 nm
Ultra Bright Red - UR
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 80 100 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 625 635 nm
Pure Green - G
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 120 180 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 515 525 nm
Ultra Bright Blue - BH
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 120 140 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength If=10mA 460 465 nm
Ultra Bright White - WH
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 3.2 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 120 140 mcd
LED Color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32 0.30,0.33 nm
Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controller, thermostats indicator, heating and cooling control systems.

Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel 1
Certifications
Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel 2
Office and Factory Overview
Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel 3 Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel 4 Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel 5 Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel 6
Company Exhibitions
Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel 7 Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel 8
Shipping Services
Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel 9 Blue 3 Digit 7 Segment LED Display for Refrigeration Control Panel 10
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
We are original manufacturers with more than 20 years of experience in optoelectronic LED displays.
Q2: What are your main products?
Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.
Q3: What is your MOQ?
Our MOQ is 1000 pieces. We can also accept sample orders and small orders with quantities less than our MOQ.
Q4: Before placing an order, can I get some samples for testing?
Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5: How long is your delivery time?
Delivery time: About 10-20 days, depending on order quantity and raw materials. For urgent orders with available raw materials, we can adjust our production plan to complete within 7-10 days.
Q6: What are your payment terms?
We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment method details are negotiable.
Q7: Can you quote FOB prices?
Yes. We can quote prices based on incoterms EXW, FOB, CIF, and DDP.
Q8: How can I get your catalog and price list?
Please provide your email address or contact us directly through our website for our catalog and price list.
Q9: Can I negotiate the prices?
Yes, we may consider discounts for bulk orders.
Q10: How much will the shipping charges be?
Shipping charges depend on shipment size and shipping method. We will provide charges based on your requirements.
Q11: Can you do custom design products?
Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.
Q12: If I send my design, can you make it exclusively for me and not show it to anyone else?
Yes, we will not show or sell your design to others without your authorization.
Q13: What is the sample lead time for customized products?
Sample lead time is approximately 20-25 working days after receiving mold cost and mold drawing approval from customers.
Q14: What are the shipping methods?
We typically ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can also choose other shipping methods that work best for you.
Q15: How do you ensure product quality?
We are ISO 9001 QMS certified manufacturers with over 20 years of experience. We conduct twice 100% testing of all products before shipment.
