Triple Digit Ultra White/Green 7 Segment LED Display for Water Heater
Product Descripition
| Part NO. | LB3720AWG1S-SMT | Can print your part number |
| Digit number | 3 digit | 2digits,3digits, 4digits,5digits,6 digits |
| Color | White/Green | White, blue,pure green, yellow-green, orange,etc. |
| Polarity | Common Anode | Common Cathode |
| Life span | 80000hours | |
| Free Samples | supported | |
| Lead time for sample | 5-7 working days | Tooling samples are 15-20 working days |
| Lead time for formal order | 15-20 working days | According to order quantity |
| OEM&ODM | Support | Based on customer’s drawing or idea |
| LOGO printing | Support | Based on customer’s drawing or idea |
| MOQ | 1000PCS | Can accept 100-500pcs for first order |
Features of Segment LED Displays
High-Contrast Display: Black background with white segments for optimal readability.
Exceptional Luminosity: High luminous intensity for excellent visibility.
Low Power Consumption: Optimized for low operating current.
Proven Reliability: Stable and long-lasting performance.
Uniform Illumination: Continuous segments with consistent light output.
Easy PCB Integration: Designed for simple and direct PCB mounting.
IC-Compatible: Low drive voltage for easy interfacing with control circuits.
RoHS Compliant: Meets environmental and safety standards.
Code:Ultra Bright White -WH
|
Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
2.6 |
|
3.0 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
|
Luminous Intensty |
Iv |
If=10mA |
120 |
|
140 |
mcd |
|
LED color Temperature |
K |
If=10mA |
5500 |
20 |
6800 |
K |
|
Chromaticity Coordinates |
X/Y |
If=10mA |
0.29,0.32 |
|
0.30,0.33 |
nm |
Color:Pure Green
|
Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=20mA |
2.5 |
|
3.0 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
|
5 |
|
V |
|
Luminous Intensty |
Iv |
If=20mA |
120 |
|
160 |
mcd |
|
Spectrum With Of Half Value |
λ |
If=20mA |
|
20 |
|
nm |
|
Wavelength |
Dλ |
If=20mA |
515 |
|
525 |
nm |
Code:Yellow Green- J/JU
|
Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.4 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
|
Luminous Intensty |
Iv |
If=10mA |
30 |
|
40 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
|
Wavelength |
Dλ |
If=10mA |
569 |
|
573 |
nm |
Code:Amber/Yellow -Y
|
Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.4 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
|
Luminous Intensty |
Iv |
If=10mA |
50 |
|
60 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
|
Wavelength |
Dλ |
If=10mA |
585 |
|
595 |
nm |
Code:Orange -F
|
Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.4 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
|
Luminous Intensty |
Iv |
If=10mA |
50 |
|
60 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
|
Wavelength |
Dλ |
If=10mA |
600 |
|
605 |
nm |
Code:Super Bright Red -R
|
Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.2 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
|
Luminous Intensty |
Iv |
If=10mA |
50 |
|
60 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
|
Wavelength |
Dλ |
If=10mA |
630 |
|
635 |
nm |
Code:Ultra Bright Red -UR
|
Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
1.8 |
|
2.2 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
|
Luminous Intensty |
Iv |
If=10mA |
90 |
|
100 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
|
Wavelength |
Dλ |
If=10mA |
620 |
|
625 |
nm |
Code:Ultra Bright Blue -BH
|
Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
|
Forward Voltage |
Vf |
If=10mA |
2.6 |
|
3.0 |
V |
|
Reverse Voltage |
Vr |
Ir=10uA |
5 |
|
|
V |
|
Luminous Intensty |
Iv |
If=10mA |
100 |
|
120 |
mcd |
|
Spectrum With Of Half Value |
△λ |
If=10mA |
|
20 |
|
nm |
|
Wavelength |
Dλ |
If=10mA |
460 |
|
470 |
nm |
Absolute Maximum Ratings(Ta=25℃)
|
Parameter |
Symbol |
Ratings |
Unit |
|
Forward Current(per dice) |
Ipm |
20 |
mA |
|
Reverse Voltage(per dice) |
Vr |
5 |
V |
|
Power Dissipation(per dice) |
Pm |
80 |
mW |
|
Operating Temperature Range |
Topr |
-40~+120 |
℃ |
|
Storage Temperature Range |
Tstg |
-40~+120 |
℃ |
|
Solder Temperature(3 sec) |
Th |
260 |
℃ |

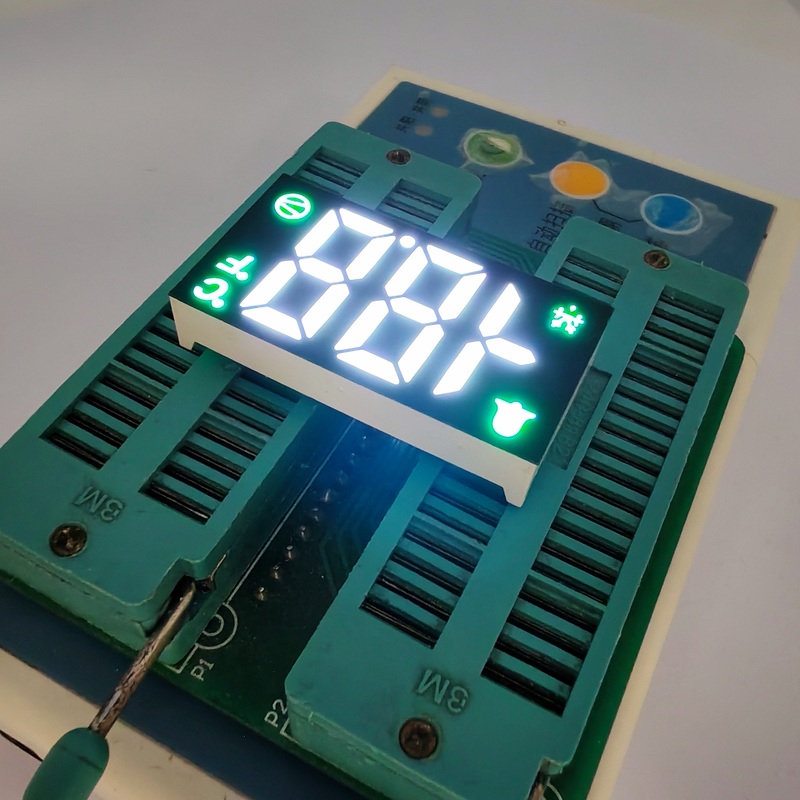

Product Pictures
