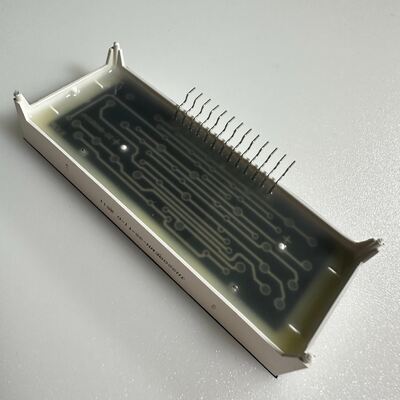

Ultra Bright 7 Segment LED Display with Customizable Features and Low Power Consumption

Ultra Bright 7 Segment LED Display with Customizable Features and Low Power Consumption

Tên thương hiệu: LIGHTBO
Số mẫu: LB3280EWH-3S-T1-D
MOQ: 1000
giá bán: Negotiate
Điều khoản thanh toán: TT, Công Đoàn Phương Tây
Khả năng cung cấp: 50000 chiếc / ngày
Thông tin chi tiết
Nguồn gốc:
THÂM QUYẾN, TRUNG QUỐC
Chứng nhận:
ISO9001&ROHS
Phân cực:
Anode chung
Điểm ảnh:
10 mm, 6 mm, 8 mm, 2,5 mm, Không
Kích thước màn hình:
Kích thước tùy chỉnh, 496x496mm,40,5 * 16,0mm, Được thực hiện theo yêu cầu, dài 50 cm
Màu chip ống:
Đầy đủ màu sắc, đỏ, xanh lá cây, xanh dương, màu tùy chỉnh
Cách sử dụng:
Trong nhà, ngoài trời, bán ngoài trời, quầy, máy giặt
Chức năng hiển thị:
Video,Đồ họa,Hoạt hình,Hình ảnh,Hình ảnh
Bảo hành:
2 năm, 3 năm, 5 năm, 2-3 năm, hai năm
Tên sản phẩm:
Màn hình LED trong nhà P5, Màn hình số Led HQ-CP50 chữ số, mua đồng hồ đếm ngược, Bảng hiển thị vide
Độ sáng:
5000cd/m2,6000 cd/m2,400-1000cd/m2,Độ sáng cao,1800CD
Tuổi thọ:
100000 giờ, 100.000 giờ, 000 giờ
Kích thước mô-đun:
160x160mm,320mm*160mm,288*120mm,576mm*576mm,512*512mm
CHIP LED:
Epistar,Ngôi sao quốc gia,Sanan,Cree + Nichia + Epistar + Opto + Silan
Màu sắc:
Đầy đủ màu sắc, 1R1G1B, Tùy chỉnh
Kích thước tủ:
496x496x62mm,500mm x 500mm,512*5120mm,500*500 mm,Tùy chỉnh
Độ phân giải pixel:
Màn hình led cho thuê 6 mm, P3.91mm P4.81mm, 4,2,5mm
Ứng dụng:
Bảng quảng cáo ngoài trời / trong nhà, Trong nhà, Đèn led quảng cáo ngoài trời, Thiết bị gia dụng /
Mật độ điểm ảnh:
27777 điểm/m2,65536,16000 điểm/m2
Mục:
Màn hình led đủ màu linh hoạt, Màn hình led tùy chỉnh Anode 0,56 Inch, màn hình led 4 chữ số
Nguồn điện:
G-energy, CL, nguồn AC hoặc 12V DC, MeanWell hoặc cùng nhãn hiệu chất lượng, MeanWell
Chất liệu tủ:
sắt, nhôm đúc, hợp kim magiê và nhôm
chi tiết đóng gói:
EPE + Thùng
Khả năng cung cấp:
50000 chiếc / ngày
Mô tả sản phẩm

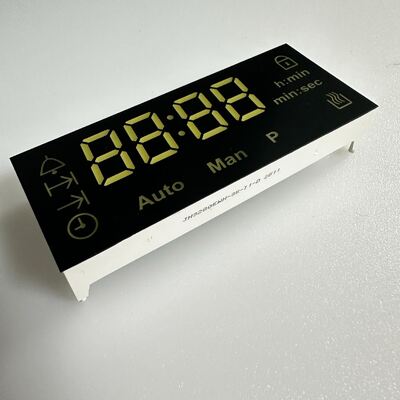

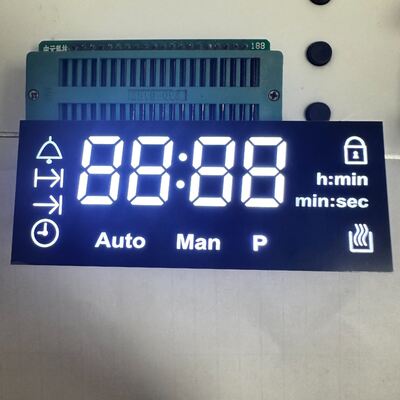

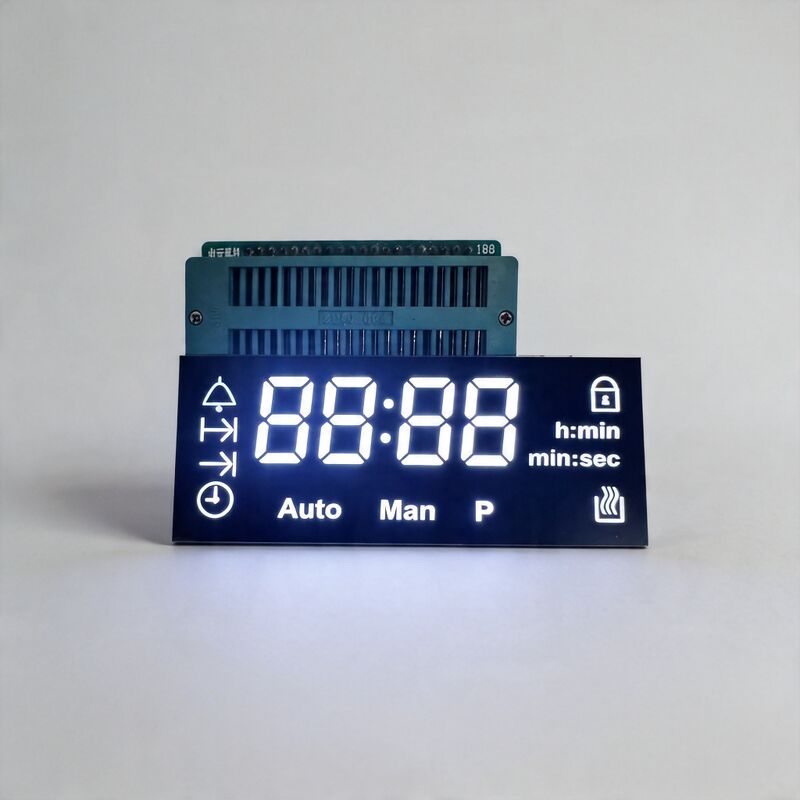

Ultra Bright LED Display for Ovens with Customizable Features

High-performance LED displays engineered for industrial applications with superior brightness and reliability.

Product Features
  • Forward voltage with high luminous intensity output
  • Low power consumption
  • Extremely low current operation
  • Evenly distributed luminous segments
  • Industrial standard size compatibility
  • Excellent reliability in bright ambient light
  • Stable performance characteristics
  • Long operational lifetime
  • RoHS/REACH compliant
Applications
  • Audio equipment and instrument panels
  • Home electronic appliances
  • Numeric displays and indicators
  • Multimedia products
  • Digital indicators for temperature, humidity, and process monitoring
Technical Specifications
Absolute Maximum Ratings (Ta=25ºC)
Parameter Symbol Ratings Unit
Forward Current (per dice)Ipm20mA
Reverse Voltage (per dice)Vr5V
Power Dissipation (per dice)Pm80mW
Operating Temperature RangeTopr-40~+85ºC
Storage Temperature RangeTstg-40~+85ºC
Solder Temperature (≤3 seconds)Th260ºC
Yellow Green - J
Parameter Symbol Condition Min Typ Max Unit
Forward VoltageVfIf=10mA1.82.4V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA3040mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthIf=10mA569574nm
Amber/Yellow - Y
Parameter Symbol Condition Min Typ Max Unit
Forward VoltageVfIf=10mA1.82.5V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA6080mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthIf=10mA585595nm
Orange - F
Parameter Symbol Condition Min Typ Max Unit
Forward VoltageVfIf=10mA1.82.4V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA6080mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthIf=10mA600605nm
Super Bright Red - R
Parameter Symbol Condition Min Typ Max Unit
Forward VoltageVfIf=10mA1.82.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA5060mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthIf=10mA630635nm
Ultra Bright Red - UR
Parameter Symbol Condition Min Typ Max Unit
Forward VoltageVfIf=10mA1.82.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA80100mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthIf=10mA625635nm
Pure Green - G
Parameter Symbol Condition Min Typ Max Unit
Forward VoltageVfIf=10mA2.63.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA120180mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthIf=10mA515525nm
Ultra Bright Blue - BH
Parameter Symbol Condition Min Typ Max Unit
Forward VoltageVfIf=10mA2.83.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA120140mcd
Spectrum Width Of Half Value△λIf=10mA20nm
WavelengthIf=10mA460465nm
Ultra Bright White - WH
Parameter Symbol Condition Min Typ Max Unit
Forward VoltageVfIf=10mA2.83.2V
Reverse VoltageVrIr=10uA5V
Luminous IntensityIvIf=10mA120140mcd
LED color TemperatureKIf=10mA5500206800K
Chromaticity CoordinatesX/YIf=10mA0.29,0.320.30,0.33nm
Additional color variants available including Yellow Green, Amber/Yellow, Orange, Super Bright Red, Ultra Bright Red, Ultra Bright Blue, and Ultra Bright White with detailed specifications available upon request.
Product Applications
Ultra Bright 7 Segment LED Display with Customizable Features and Low Power Consumption 0

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, specializing in R&D, manufacturing and sales of optoelectronic LED displays. ISO 9001:2015 Quality Management Systems certified with over 15 years of OEM and ODM experience.

Certifications
Ultra Bright 7 Segment LED Display with Customizable Features and Low Power Consumption 1
Office and Factory Overview
Ultra Bright 7 Segment LED Display with Customizable Features and Low Power Consumption 2 Ultra Bright 7 Segment LED Display with Customizable Features and Low Power Consumption 3 Ultra Bright 7 Segment LED Display with Customizable Features and Low Power Consumption 4 Ultra Bright 7 Segment LED Display with Customizable Features and Low Power Consumption 5
Company Exhibitions
Ultra Bright 7 Segment LED Display with Customizable Features and Low Power Consumption 6 Ultra Bright 7 Segment LED Display with Customizable Features and Low Power Consumption 7
Shipping Services
Ultra Bright 7 Segment LED Display with Customizable Features and Low Power Consumption 8 Ultra Bright 7 Segment LED Display with Customizable Features and Low Power Consumption 9
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.
Q2: What are your main products?
Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through Hole LEDs, SMD LEDs, LED Backlights, and more.
Q3: What is your MOQ?
Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.
Q4: Can I get samples for testing before placing an order?
Yes. We provide 5-10 free samples for testing, with freight costs borne by the customer.
Q5: How long is your delivery time?
Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.
Q6: What are your payment terms?
We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.
Q7: Can you provide FOB prices?
Yes. We quote prices based on INCOTERMS including EXW, FOB, CIF, and DDP.
Q8: How can I get your catalog and price list?
Please provide your email address or contact us directly through our website.
Q9: Can I negotiate prices?
Yes, we offer discounts for bulk orders.
Q10: How much are shipping charges?
Shipping costs depend on shipment size and method. We provide quotes upon request.
Q11: Do you offer custom design services?
Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.
Q12: Will you keep my custom design confidential?
Yes, we will not share or sell your design to others without authorization.
Q13: What is the lead time for customized product samples?
Sample lead time is approximately 20-25 working days after receiving mold cost and design approval.
Q14: What shipping methods do you use?
We ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.
Q15: How do you ensure product quality?
As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
